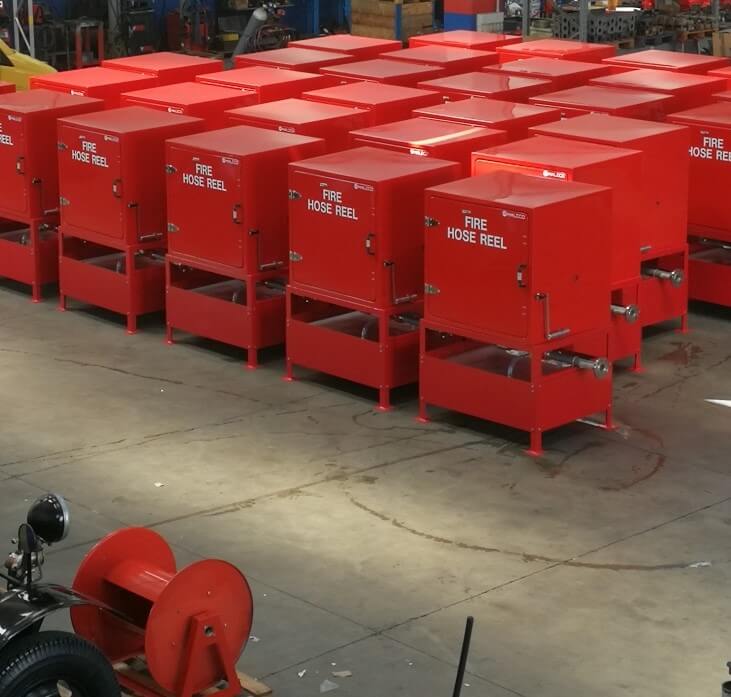

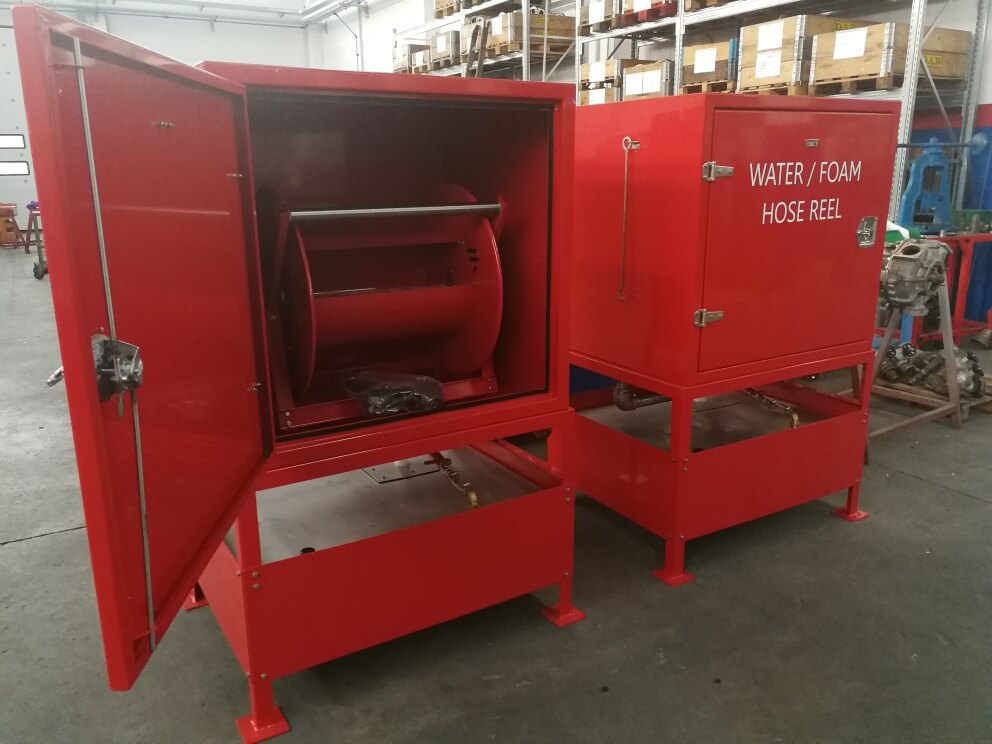

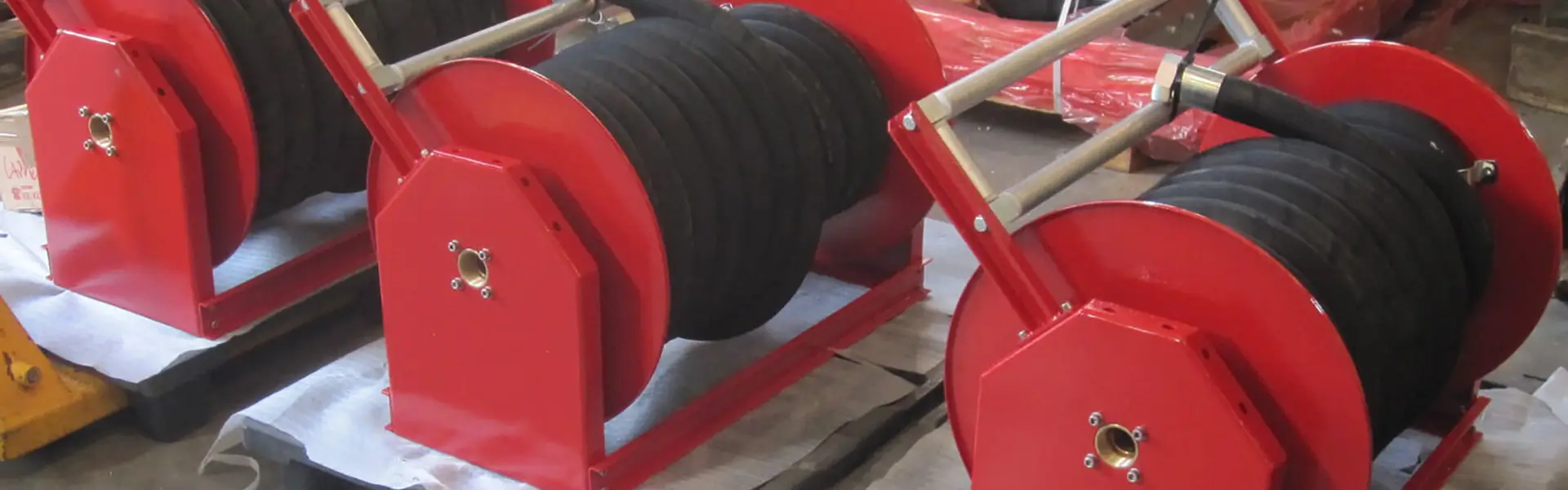

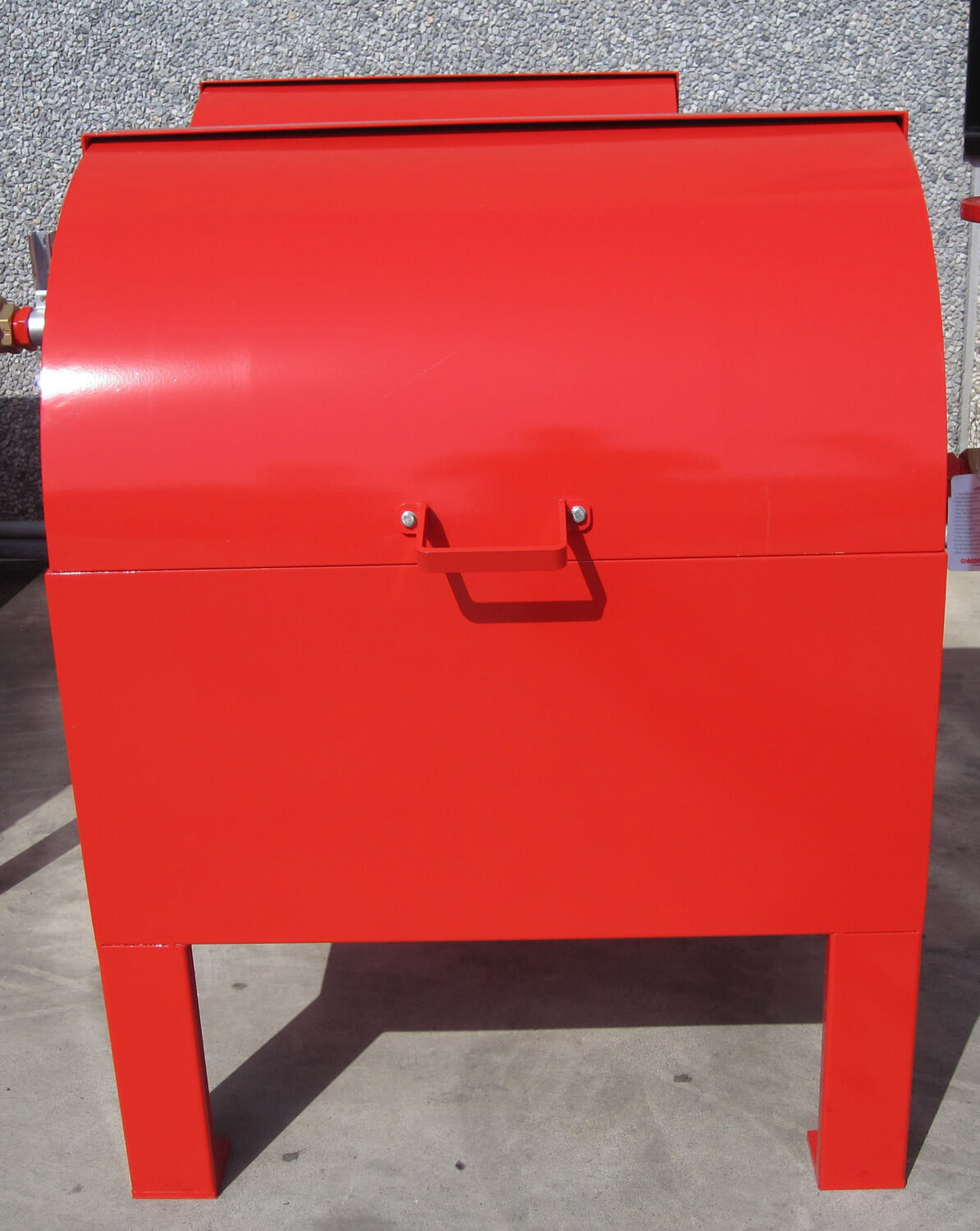

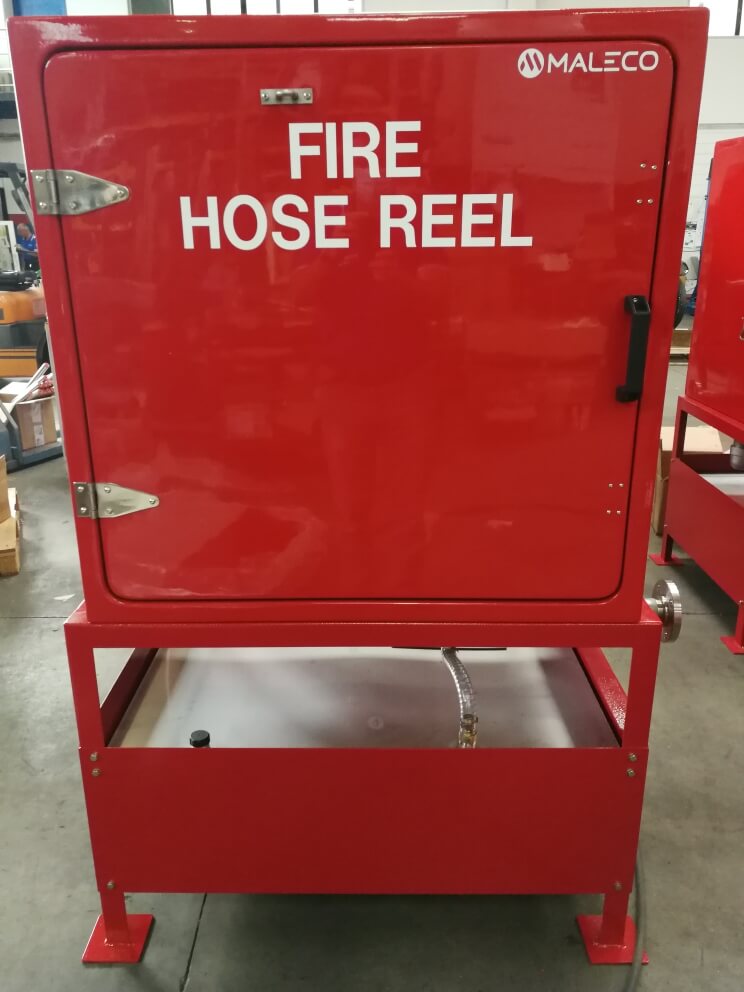

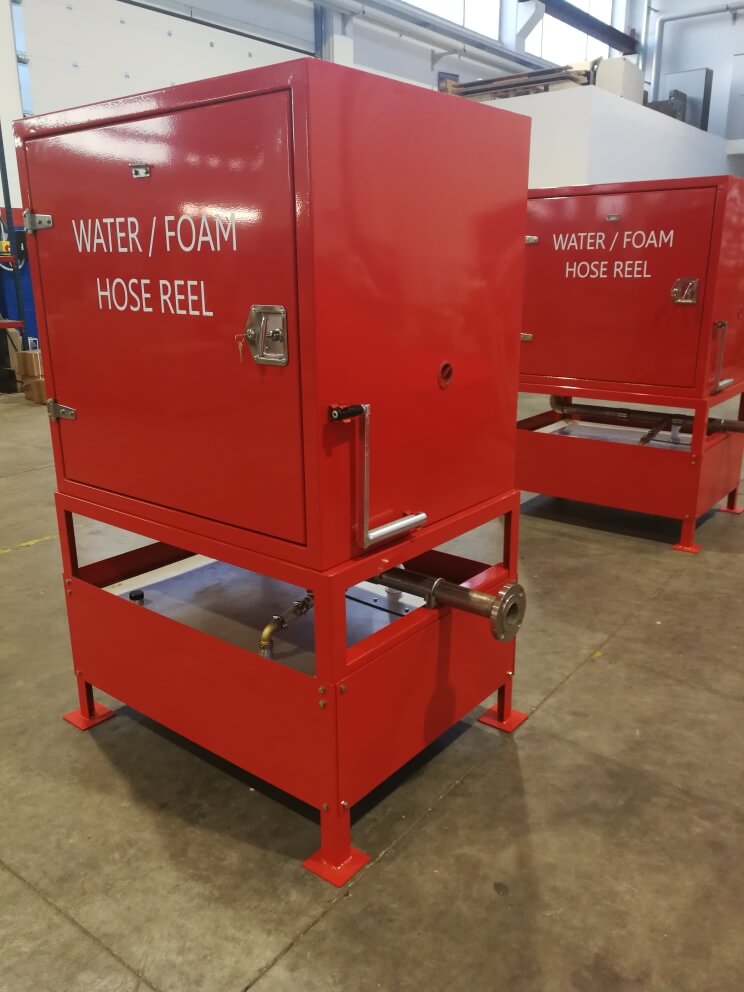

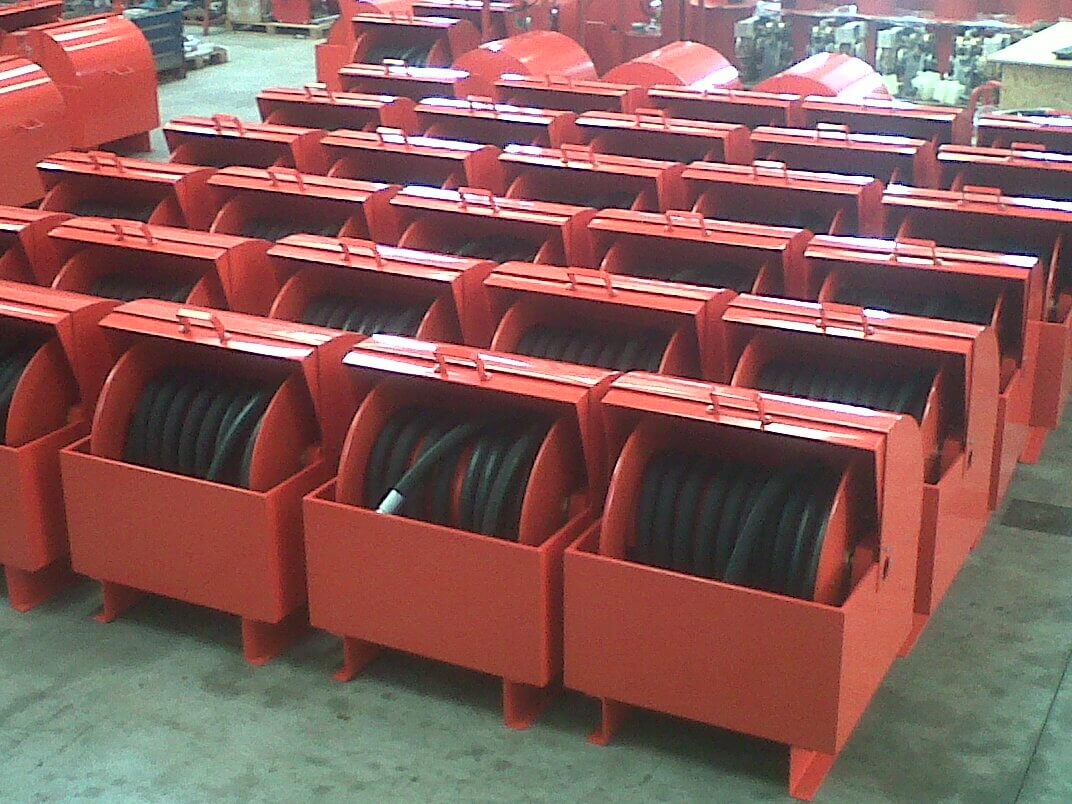

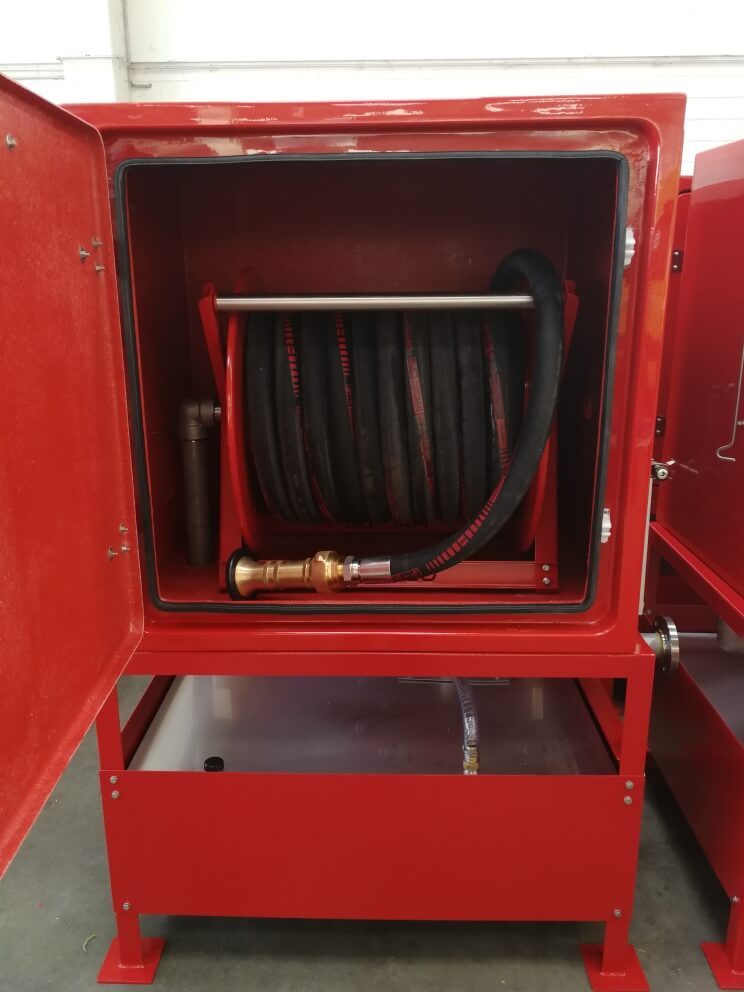

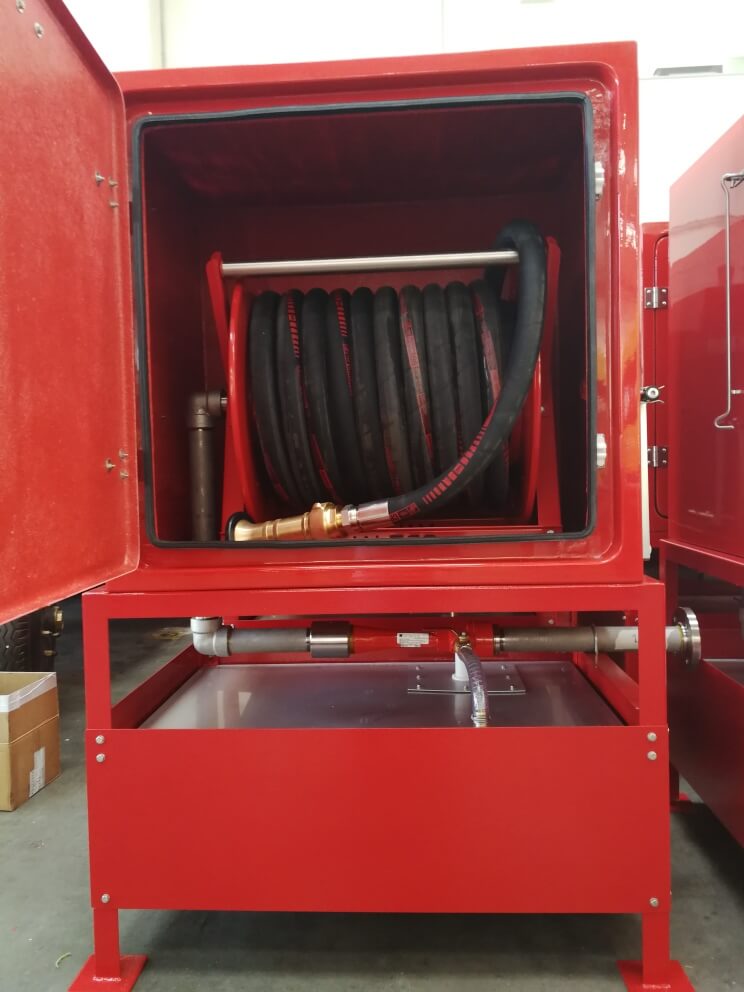

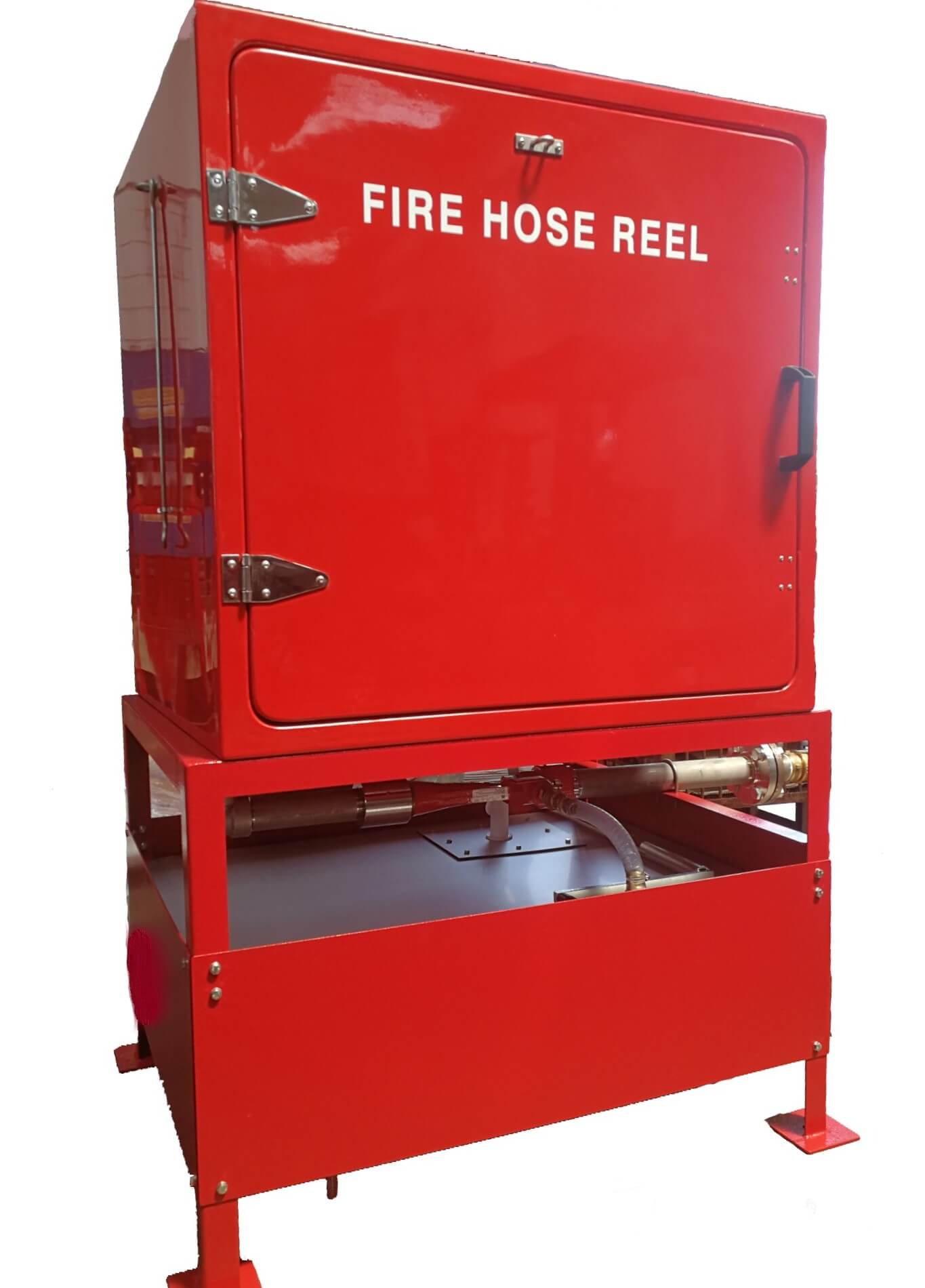

Fixed Fire Hose Reels
MALECO is the manufacturer of a wide range of hose reels, suitable for multiple applications, including civil, industrial and military uses. The electric reels are designed to offer high efficiency, ease of use and reliability, meeting the needs of different situations operational
MALECO electric hose reels are manufactured using high quality materials to ensure durability and optimum performance:
- Bronze: Resistant to corrosion and wear, ideal for marine and industrial applications.
- Stainless Steel: Offers excellent corrosion resistance and a long service life, particularly suitable for aggressive environments.
- Brass: With antibacterial properties and high mechanical resistance, it is suitable for various technical applications.
The internal passages vary from ¾” to 1”½, ensuring low pressure losses thanks to the accurate study of fluid dynamics.
Structure
Available in Carbon Steel with polyester coating, hot dip galvanizing or Stainless Steel to adapt to different operating and environmental conditions.
Power

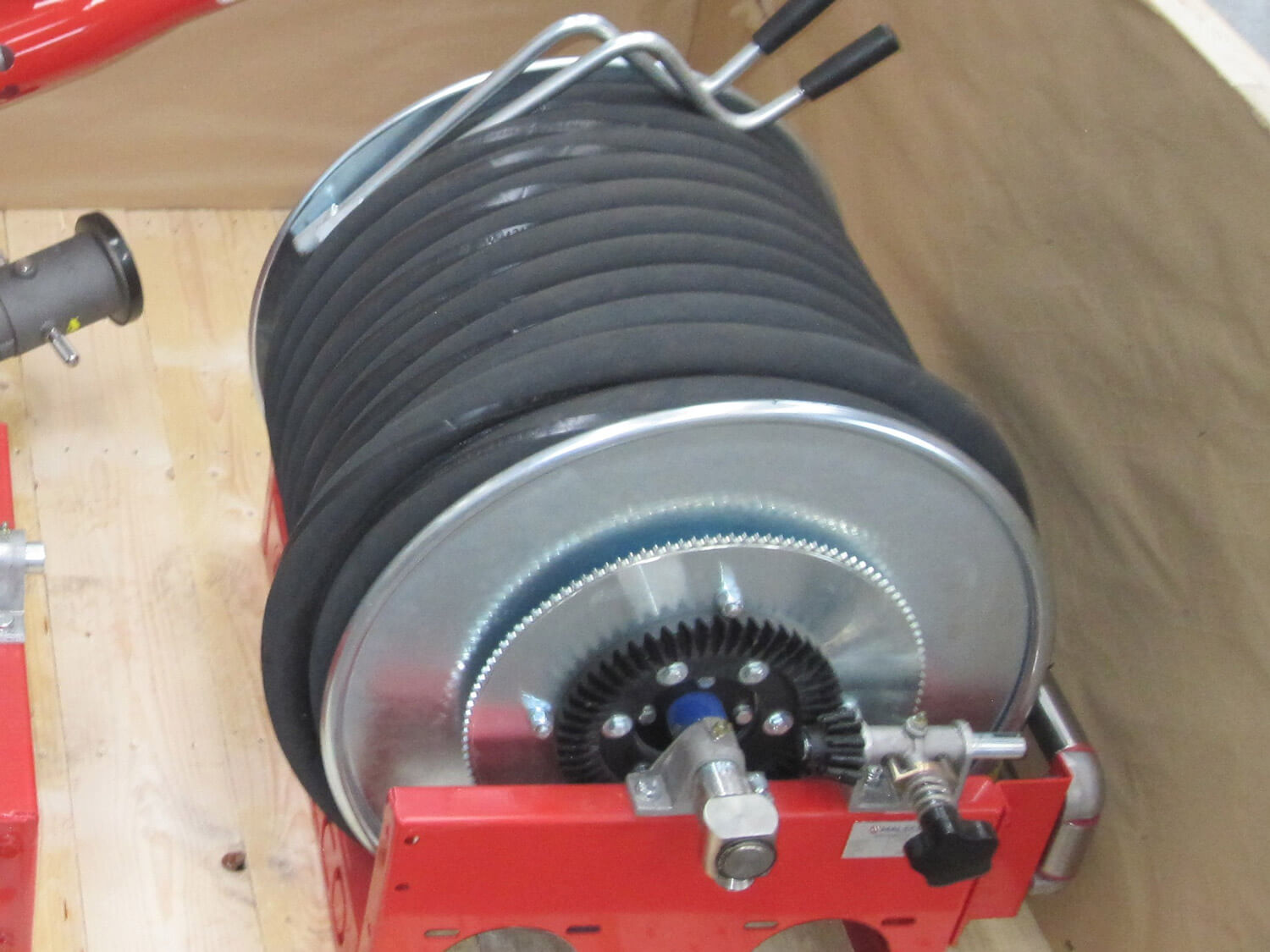

- Swivel Type: Allows smooth rotation, avoiding torsion and stress on the hose during winding and unwinding operations.
- Electric Rewind 12/24 Vdc 300 W, IP 55: Ensures efficient and effortless rewinding, ideal for applications requiring rapid rewinding of the hose
- Available with electric brake 12/24 Vdc 21 W: For more precise control during winding and unwinding operations, ensuring safety and reliability
Assembly
- Positioning: They can be mounted upside down, horizontally, with inlets positioned on the right or left.
- Customization: The electric motor position can be chosen either on the right or left, according to the specific installation needs.
- Locking: During winding and unwinding operations, different braking options are available to ensure safety and control. These can be manual or electrically remote controlled.

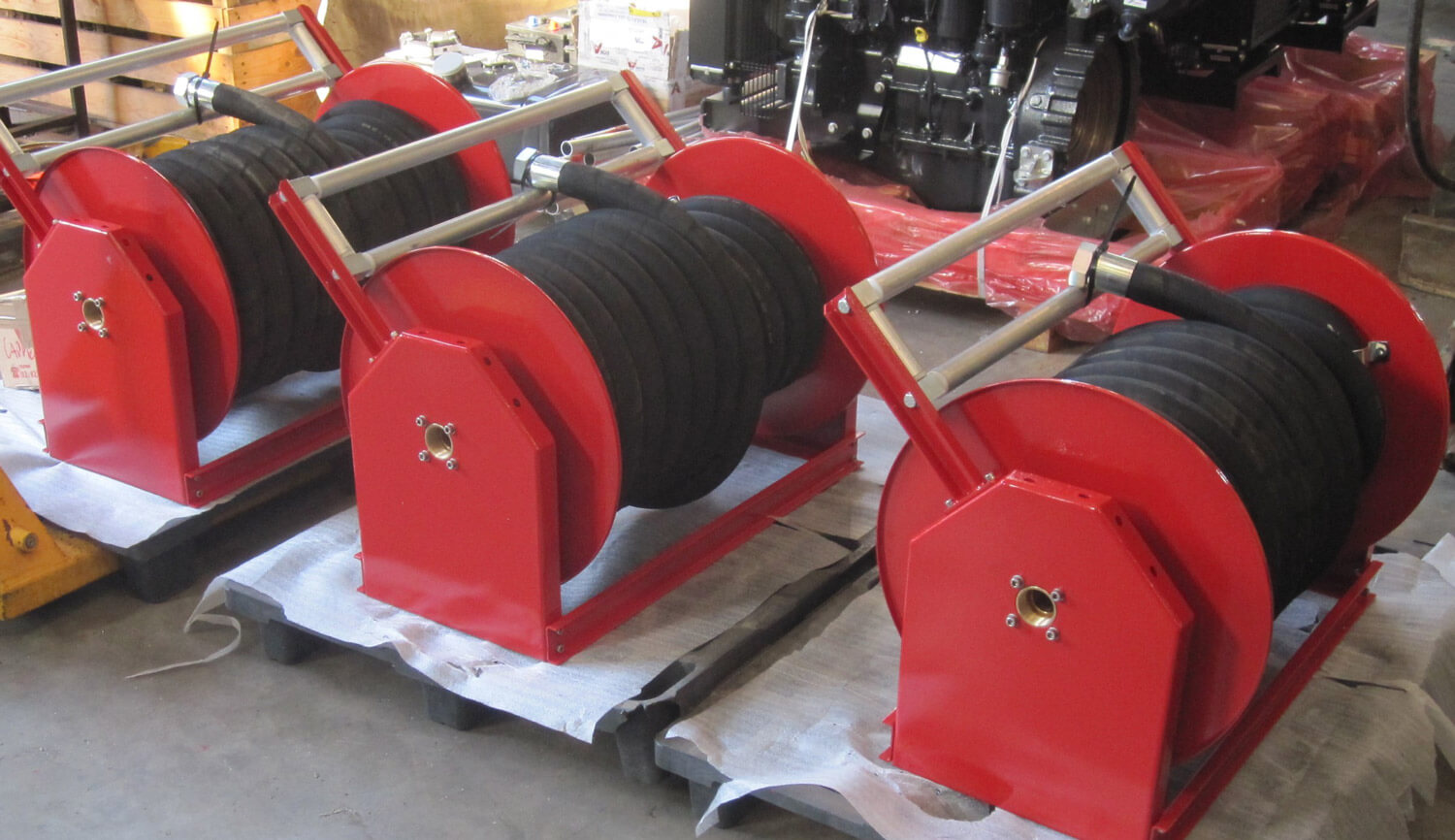

- The guides can be applied at the top or bottom of the drum or fixed directly to the support of the reel structure.
- Features: Designed to allow the operator to unwind the hose even in an angled position, avoiding jamming in the drum or structure.
- Adaptability: The universal oscillating drum is suitable for 12/24 Vdc electric rewinding, ensuring smooth and reliable operation.
Fields of application
- Fixed protection: Permanent installations for fire protection, ensuring a quick and effective response in case of emergency.
- Storage tank area: Used for safety and emergency management in storage sites, preventing fires and ensuring safe operations.
- Wheel trailer: Ideal for mobile applications, allowing easy handling and use in different operational situations.
- Fire engines: Essential equipment for fire-fighting vehicles, ensuring speed and efficiency during fire-fighting operations.
- Marine applications: Resistance to corrosion and seawater, suitable for use on ships and offshore platforms, ensuring safety in marine environments.
- Helideck - Hangar: For fire protection in helicopter landing areas and hangars, ensuring the safety of aircraft operations.
- Hydrant monitors: For the control and distribution of water in fire-fighting systems, ensuring adequate and efficient coverage of risk areas.
- Jetty loading platforms: Safety in loading and unloading operations on docks, preventing fires and ensuring safety of operations.
- Refineries: Industrial applications in highly flammable environments, ensuring safety of operations and protection of plants.
