Vehicular Firefighting Pumps
With the new NIAGARA SERIES range, MALECO sets new standards in the specific field of centrifugal firefighting pumps. The advanced study of internal fluid dynamics, compact and lightweight design, and high performance place the NIAGARA series firefighting pumps at the top of their category.
Capable of operating in any environment and climatic condition and subjected to rigorous testing, MALECO NIAGARA SERIES pumps can be used wherever maximum efficiency is required in tough working conditions.
Niagara Series

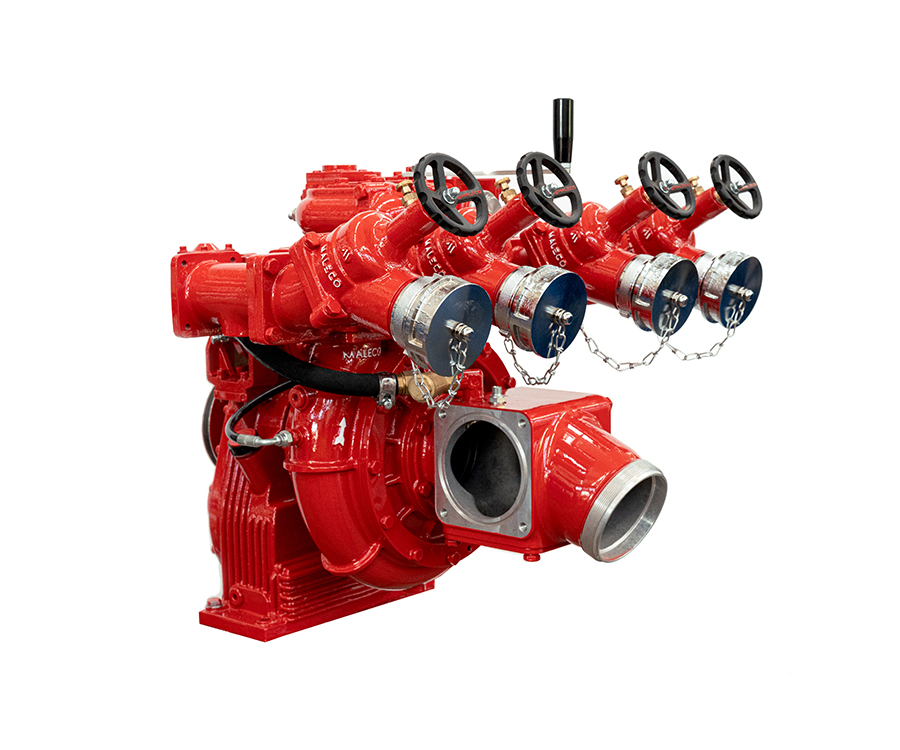

NIAGARA C-SERIES fire pumps are able of operating in any environment and climatic conditions and are subjected to strictly tests. The advanced study of internal fluid dynamics, compact and lightweight design, the high-performance place NIAGARA C-SERIES fire pumps at the top of their category.

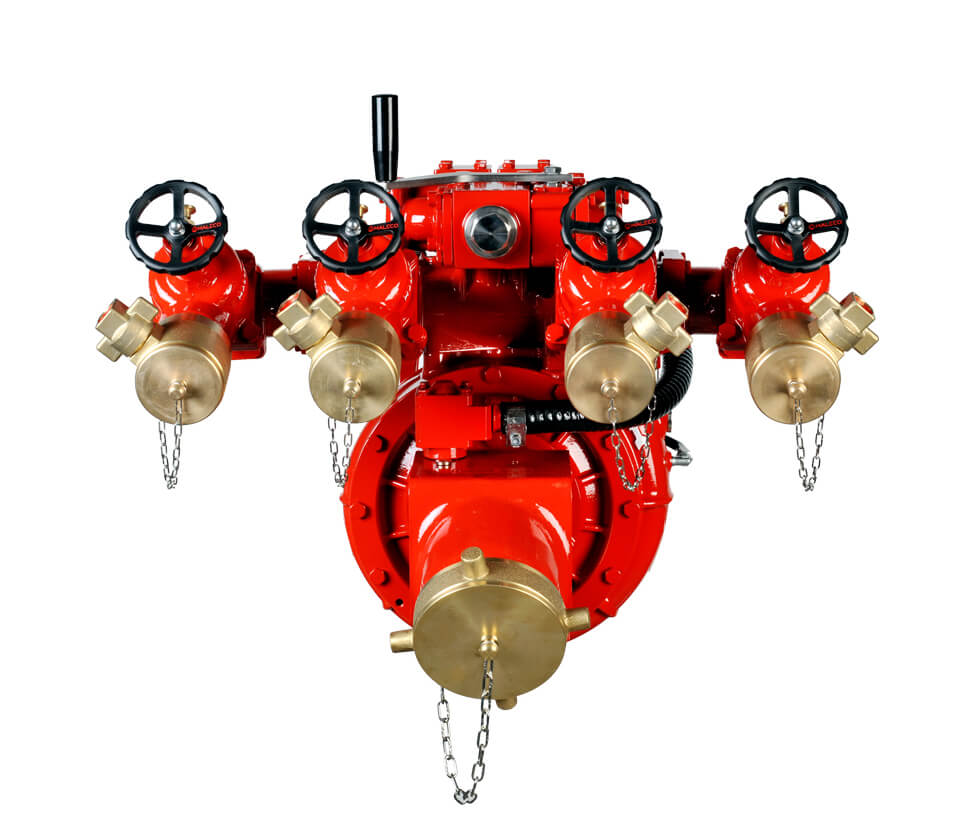

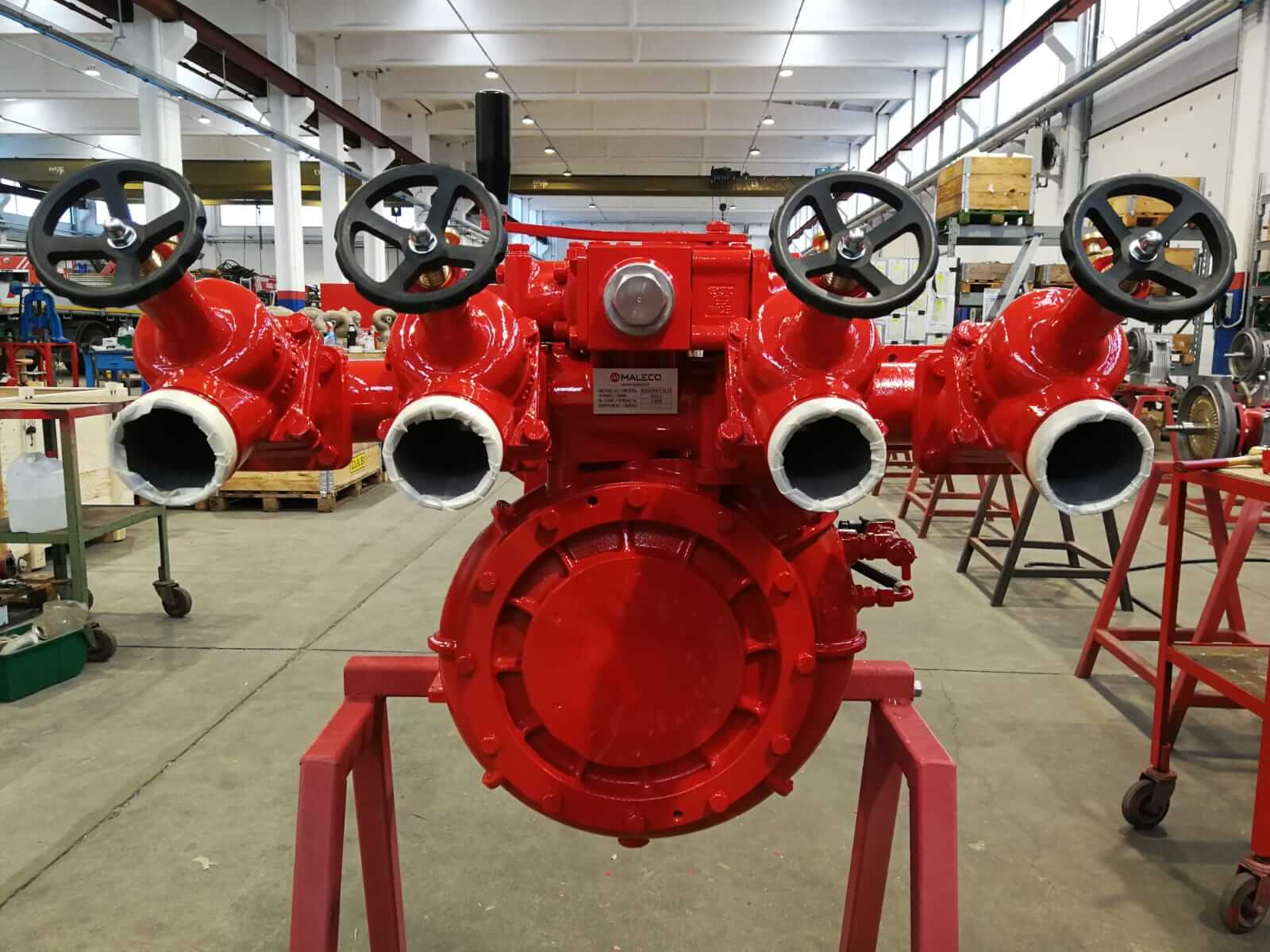

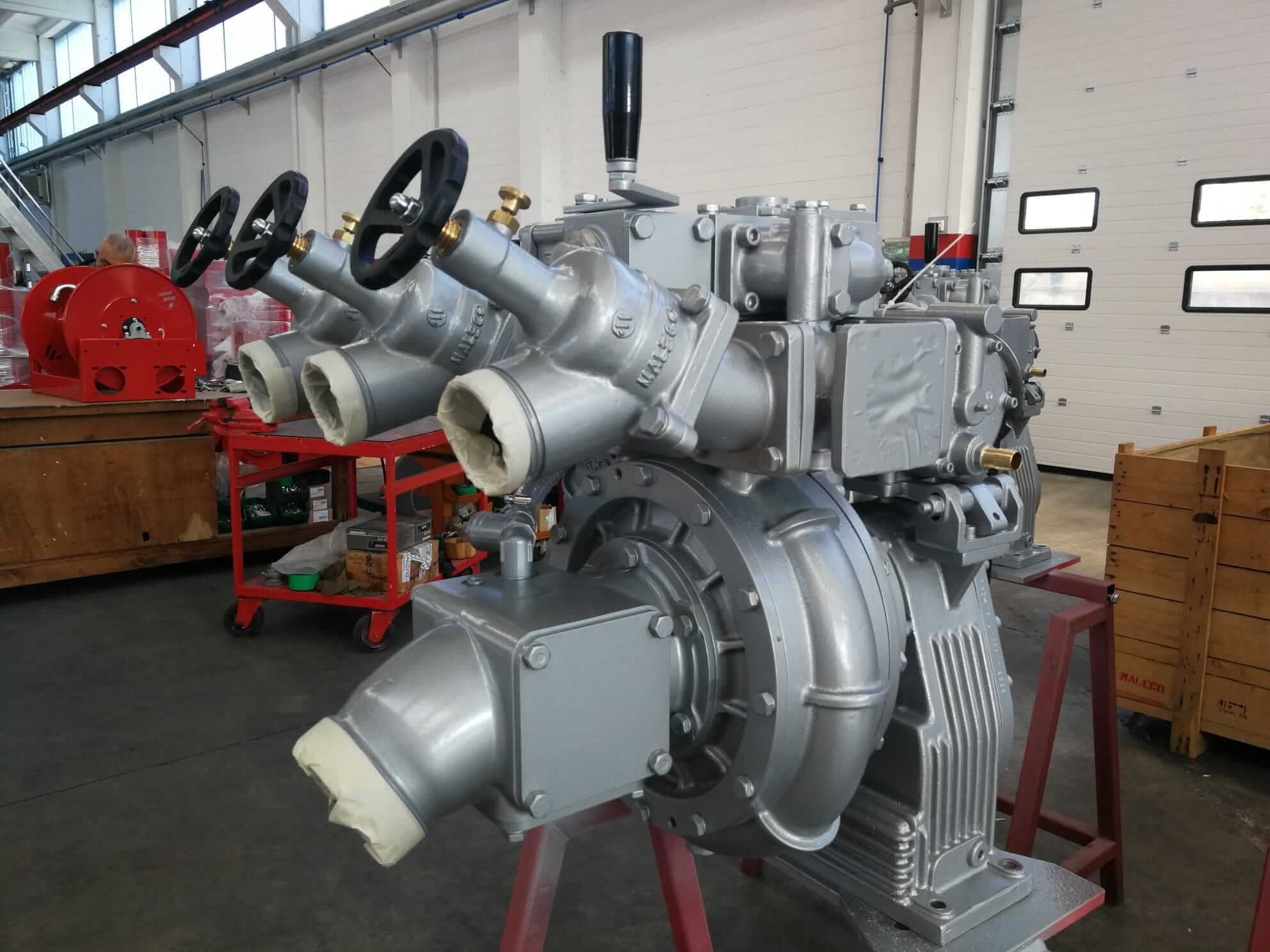

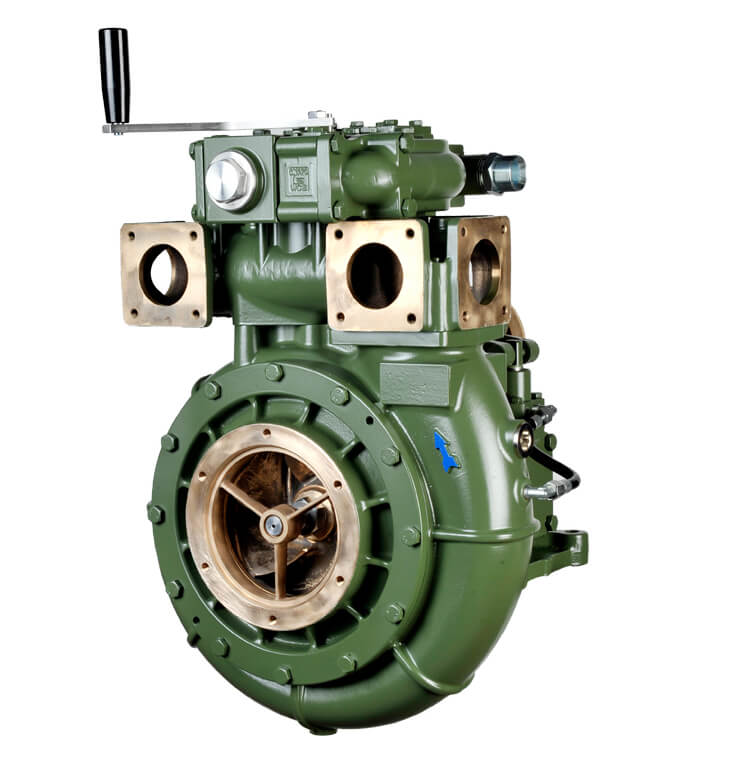

Niagara C ITA Niagara C ENG- Centrifugal pump type, double stage, suitable for water tanker, fire hydrants or water well feeding
- Case made of Bronze or Aluminium Light Alloy whit anticorrosion treatment
- Medium Pressure impeller made of Bronze or Aluminium Light Alloy whit anti-corrosion treatment
- High pressure impeller made of Bronze
- Impeller's wear rings replaceable
- Ball bearing box made of Cast Iron
- DUPLEX Stainless Steel shaft supported by ball-bearings
- Self-balanced mechanical seal
- Flanged suction inlet on the pump body

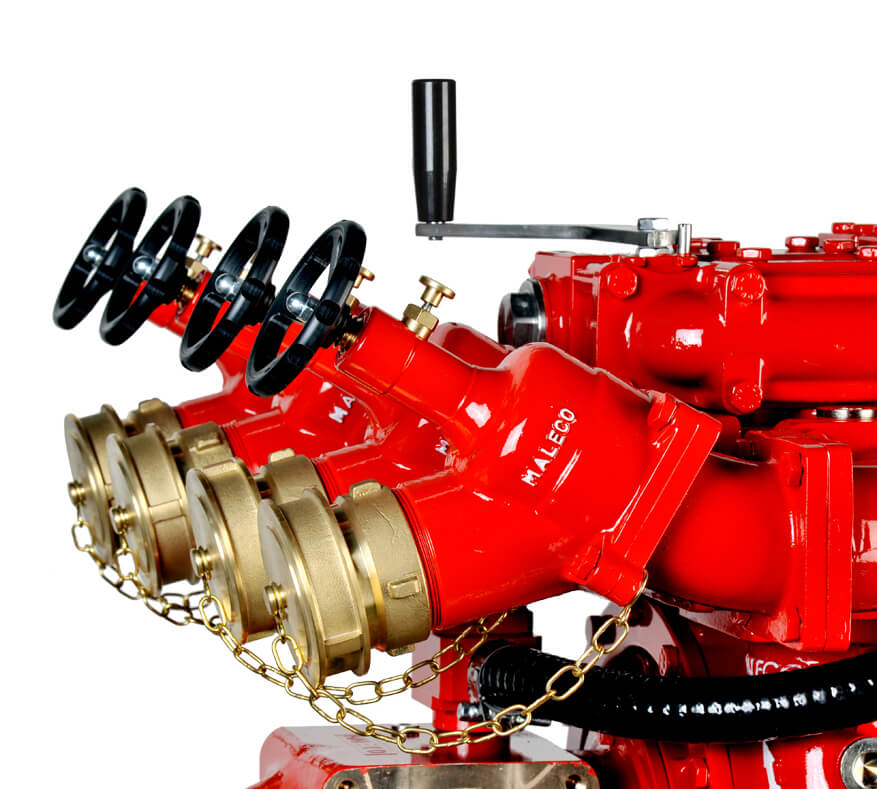

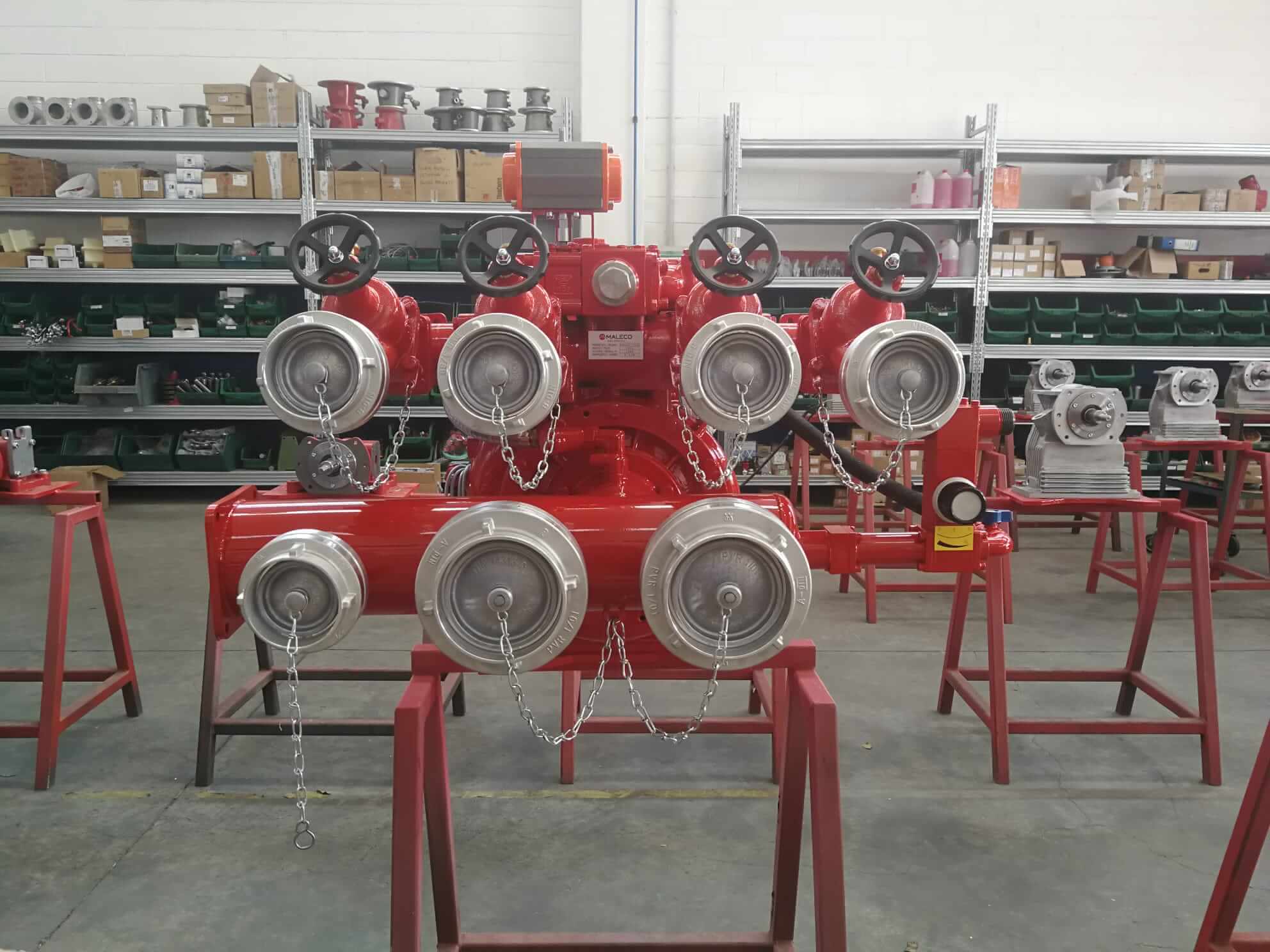

- Delivery manifold made of Bronze or Aluminium Light Alloy whit anti-corrosion treatment equipped of n°6 flanged connections
- Thermal relief valve
- Overpressure security valve on HP stage
- High pressure hose reel connections
- Stainless Steel strainer on high pressure stage
- Possibility of adopting different priming systems:
- Water ring (available in Aluminium or Bronze)
- Reciprocating double piston
- Possibility of adopting a gearbox with N°4 available ratios
- Fully compliant to EN 1028-1 and EN 1028-2

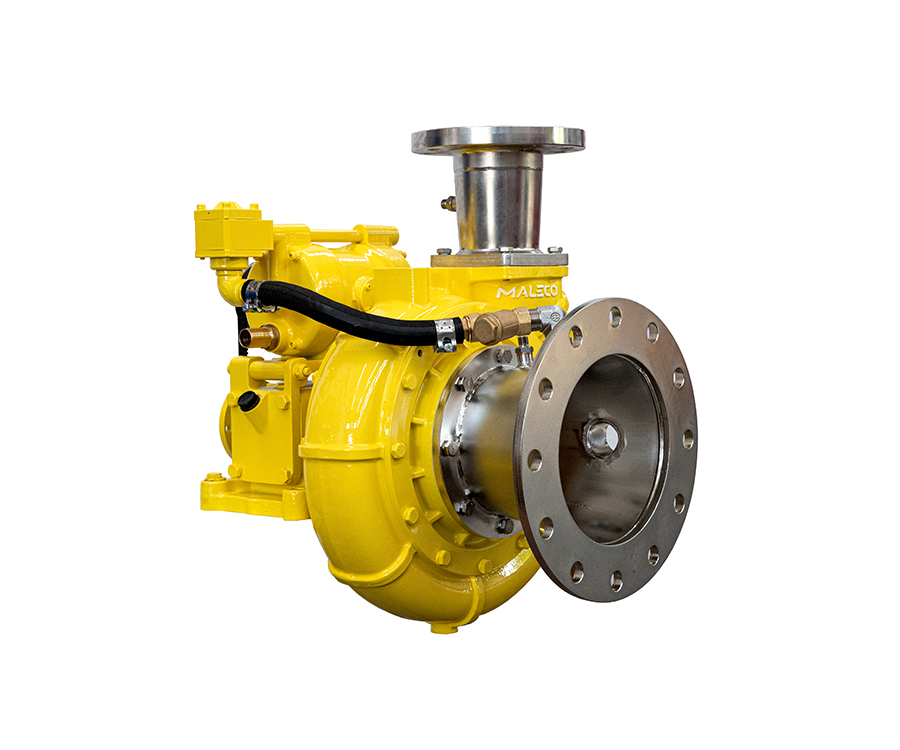

NIAGARA M-SERIES fire pumps are able of operating in any environment and climatic conditions and are subjected to strictly tests. The advanced study of internal fluid dynamics, compact and lightweight design, the high-performance place NIAGARA M-SERIES fire pumps at the top of their category.

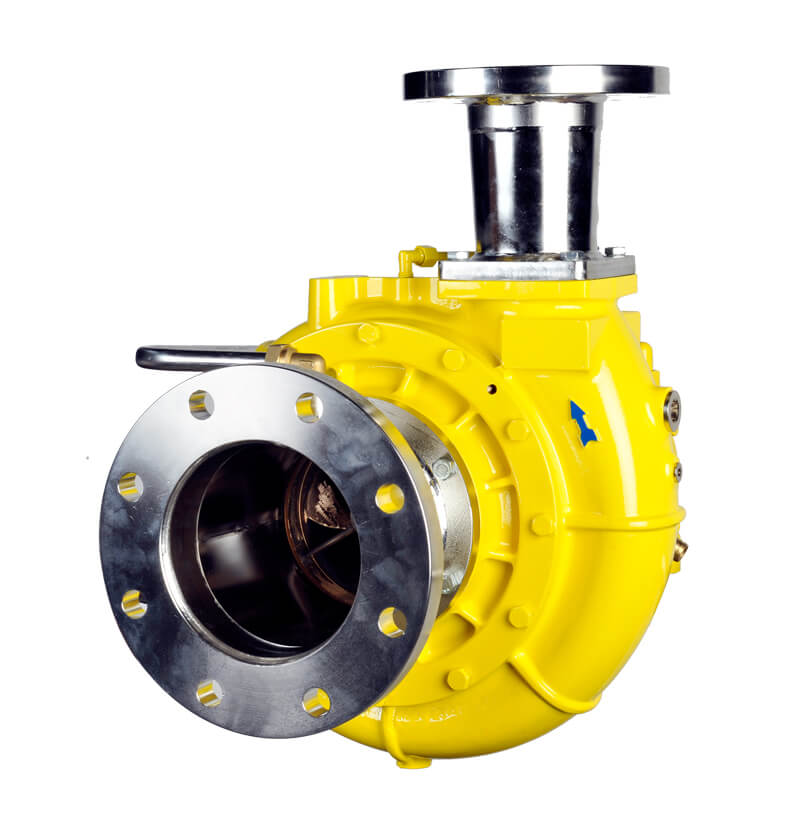

Niagara M ITA Niagara M ENG- Centrifugal pump type, single stage, suitable for water tanker, fire hydrants or water well feeding
- Case made of Bronze or Aluminium Light Alloy whit anti-corrosion treatment
- Impeller made of Bronze or Aluminium Light Alloy whit anti-corrosion treatment
- Impeller’s wear rings replaceable
- Ball bearing box made of Cast Iron
- Stainless-Steel shaft supported by ball-bearings
- Self-balanced mechanical seal
- Flanged suction inlet on the pump body
- Flanged delivery outlet on the pump body
- Possibility of adopting different priming systems:
- Water ring (available in Aluminium or Bronze)
- Reciprocating double piston
- Possibility of adopting a gearbox with N°4 available ratios
- Fully compliant to EN 1028-1 and EN 1028-2

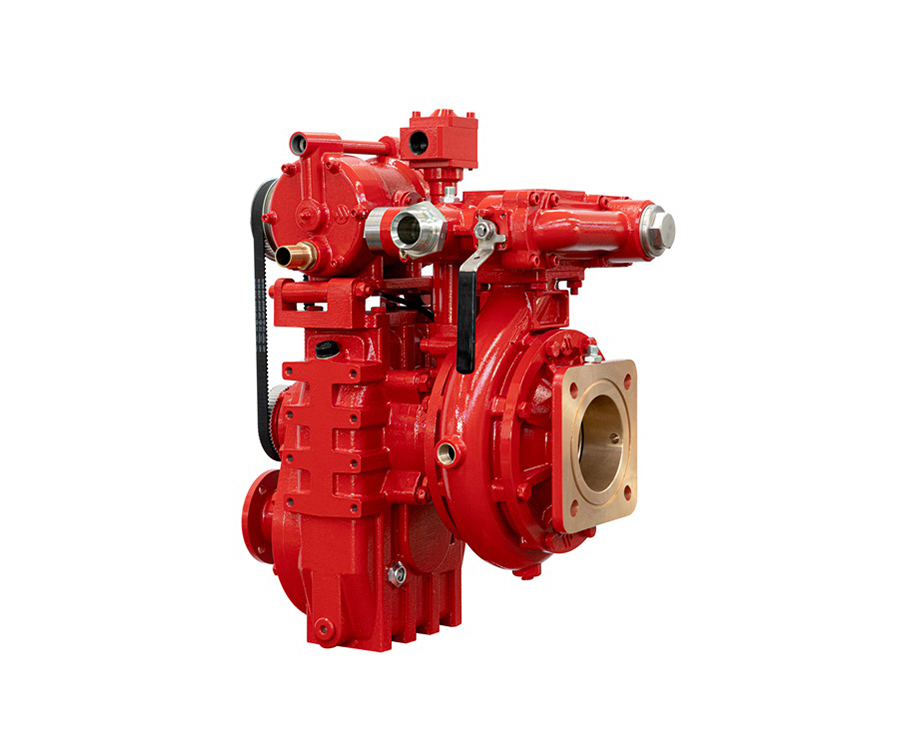

MALECO NIAGARA-VICTORY pumps feature a compact and lightweight design, while their high performances places them at the top of their class. Capable of operating in any environment and climatic conditions and subjected to strictly tests, MALECO ‘NIAGARA-VICTORY’ pumps can be used wherever maximum efficiency is required in harsh working conditions.

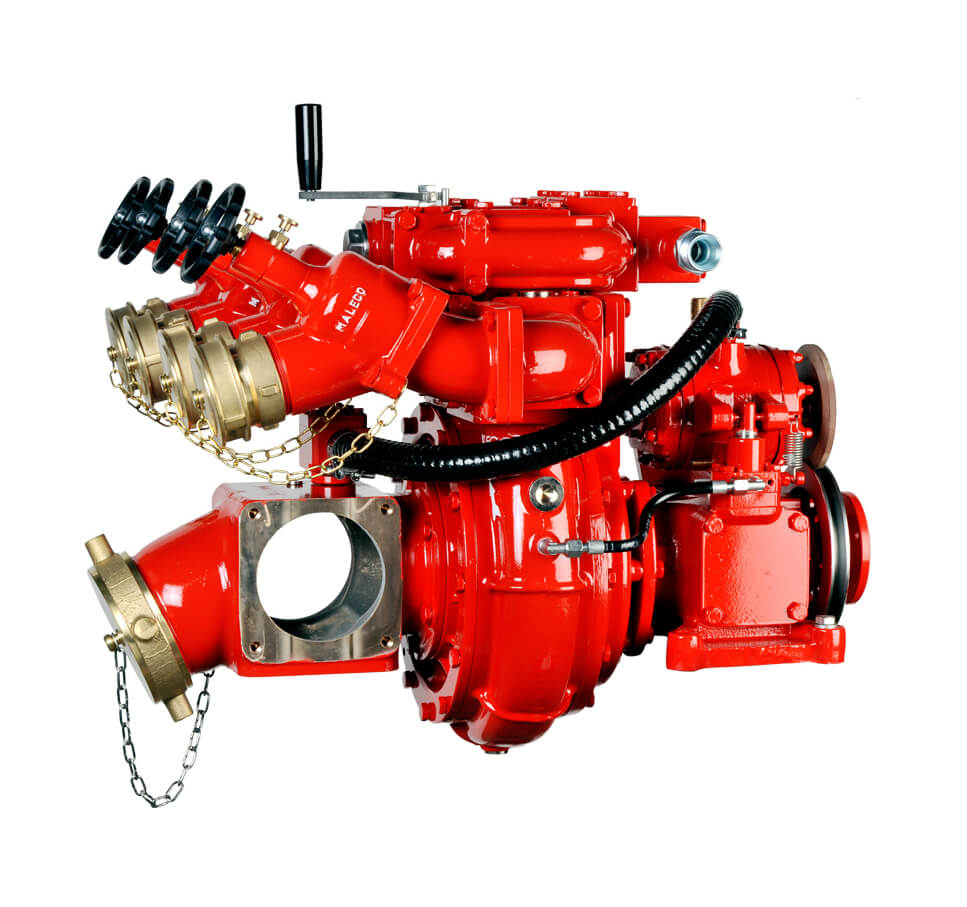

Niagara Victory C ITA Niagara Victory C ENG- Centrifugal pump type, double stage - double impellers, suitable for water tanker, fire hydrants or water well feeding
- Case made of Aluminium with anti-corrosion treatment or Bronze
- Medium Pressure Stage impeller made of Aluminium with anti-corrosion treatment or Bronze
- High Pressure Stage impeller made of Stainless Steel
- Impeller’s wear rings easily replaceable
- Stainless Steel shaft supported by ball-bearings
- Self-balanced and self-adjusting mechanical seal - maintenance free
- Overpressure Security Valve on HP stage
- Recirculation Valve for medium pressure operation
- High pressure hose reel connection
- Flanged inlet
- Stainless steel Strainer on high pressure stage
- Priming System with automatic engagement / disengagement done through electric clutch 12 / 24 VDC and pressure sensor, supplied fully assembled to the water pump

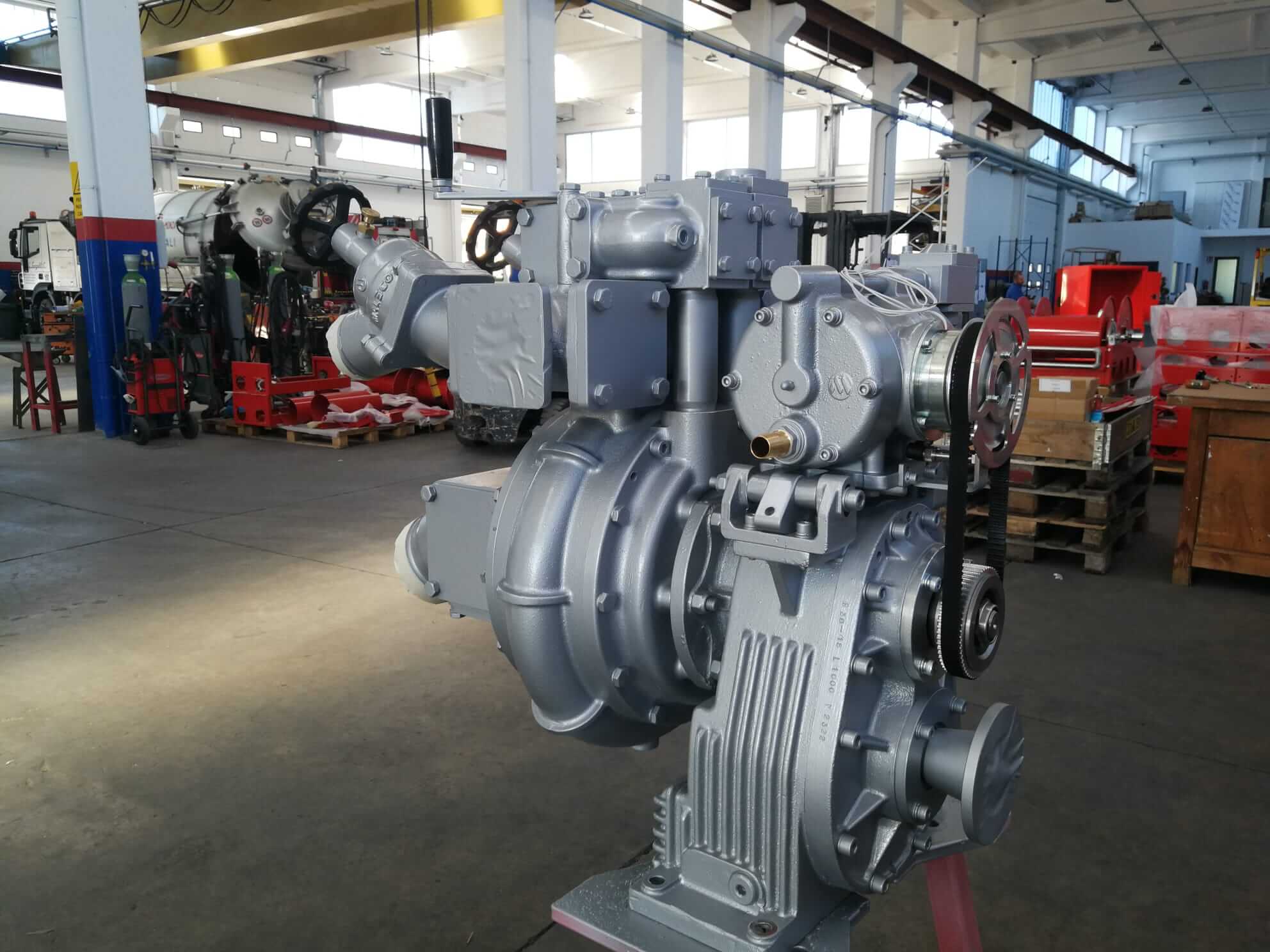

- Niagara-Victory Gearbox
- Aluminium construction
- Provide with integrated water-cooling system
- N°3 ratio available
- Possible gearbox installations:
- Vertical
- Horizontal left side
- Horizontal right side
- Primary Steel shaft supported by ball-bearings
- Drive flange SAE 1410
- Fully compliant to EN 1028-1 and EN 1028-2

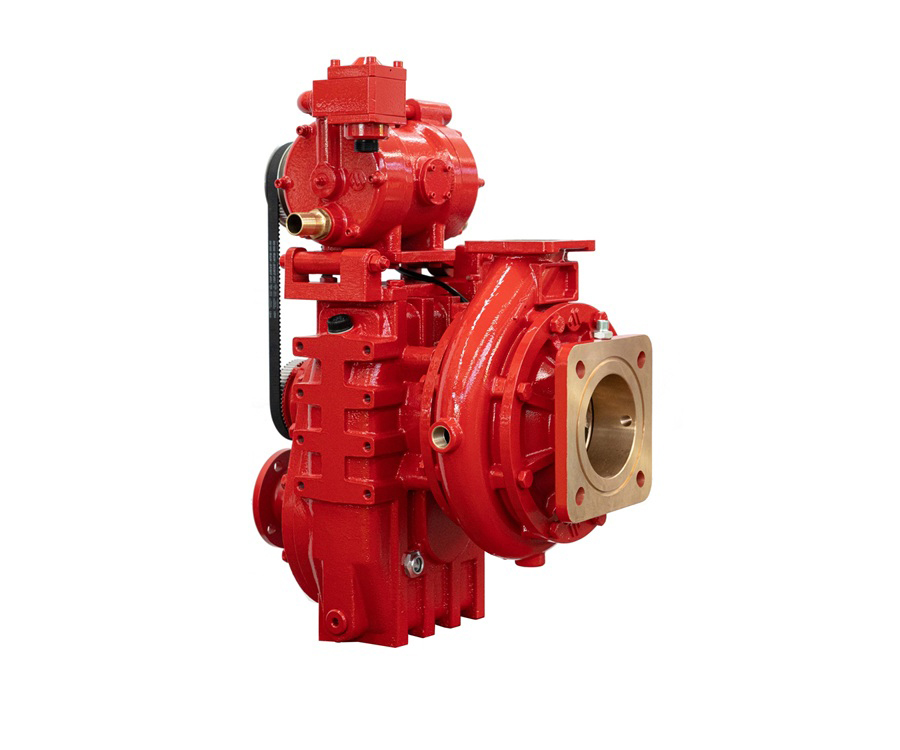

MALECO NIAGARA-VICTORY pumps feature a compact and lightweight design, while their high performances places them at the top of their class. Capable of operating in any environment and climatic conditions and subjected to strictly tests, MALECO ‘NIAGARA-VICTORY’ pumps can be used wherever maximum efficiency is required i harsh working conditions.
Niagara Victory M ITA Niagara Victory M ENG- Centrifugal pump type, single stage – single impellers, suitable for water tanker, fire hydrants or water well feeding
- Case made of Aluminium with anti-corrosion treatment or Bronze
- Medium Pressure Stage impeller made of Aluminium with anti-corrosion treatment or Bronze
- Impeller’s wear rings easily replaceable
- Stainless Steel shaft supported by ball-bearings
- Self-balanced and self-adjusting mechanical seal – maintenance free
- Flanged horizontal inlet
- Flanged vertical outlet
- Priming System with automatic engagement / disengagement done through electric clutch 12 / 24 VDC and pressure sensor, supplied fully assembled to the water pump
- Niagara-Victory Gearbox
- Aluminium construction
- Provide with integrated water-cooling system
- N°3 ratio available
- Possible gearbox installations:
- Vertical
- Horizontal left side
- Horizontal right side
- Primary Steel shaft supported by ball-bearings
- Drive flange SAE 1410
- Fully compliant to EN 1028-1 and EN 1028-2

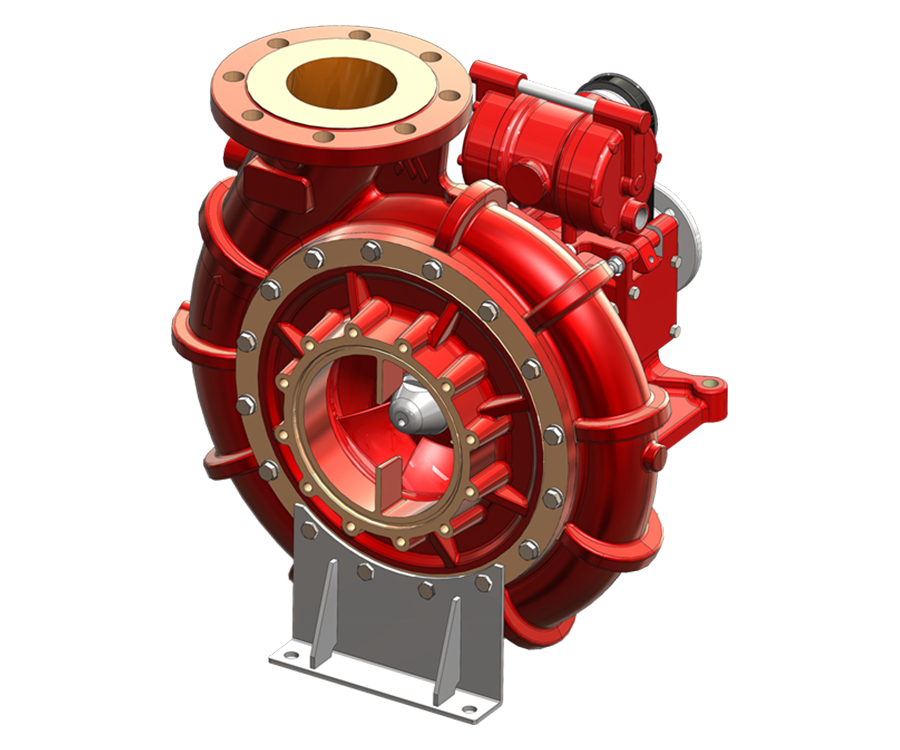

The MALECO NIAGARA M100.10 pump has a high performance that places it at the top of its class. Capable of operating in any environment and climatic conditions and subjected to strictly tests, the MALECO NIAGARA M100.10 pump can be used wherever maximum efficiency is required in tough working conditions.
Niagara M100.10 Tech. ITA Niagara M100.10 Tech. ENG- Centrifugal pump type, single stage, suitable for water tanker, fire hydrants or water well feeding

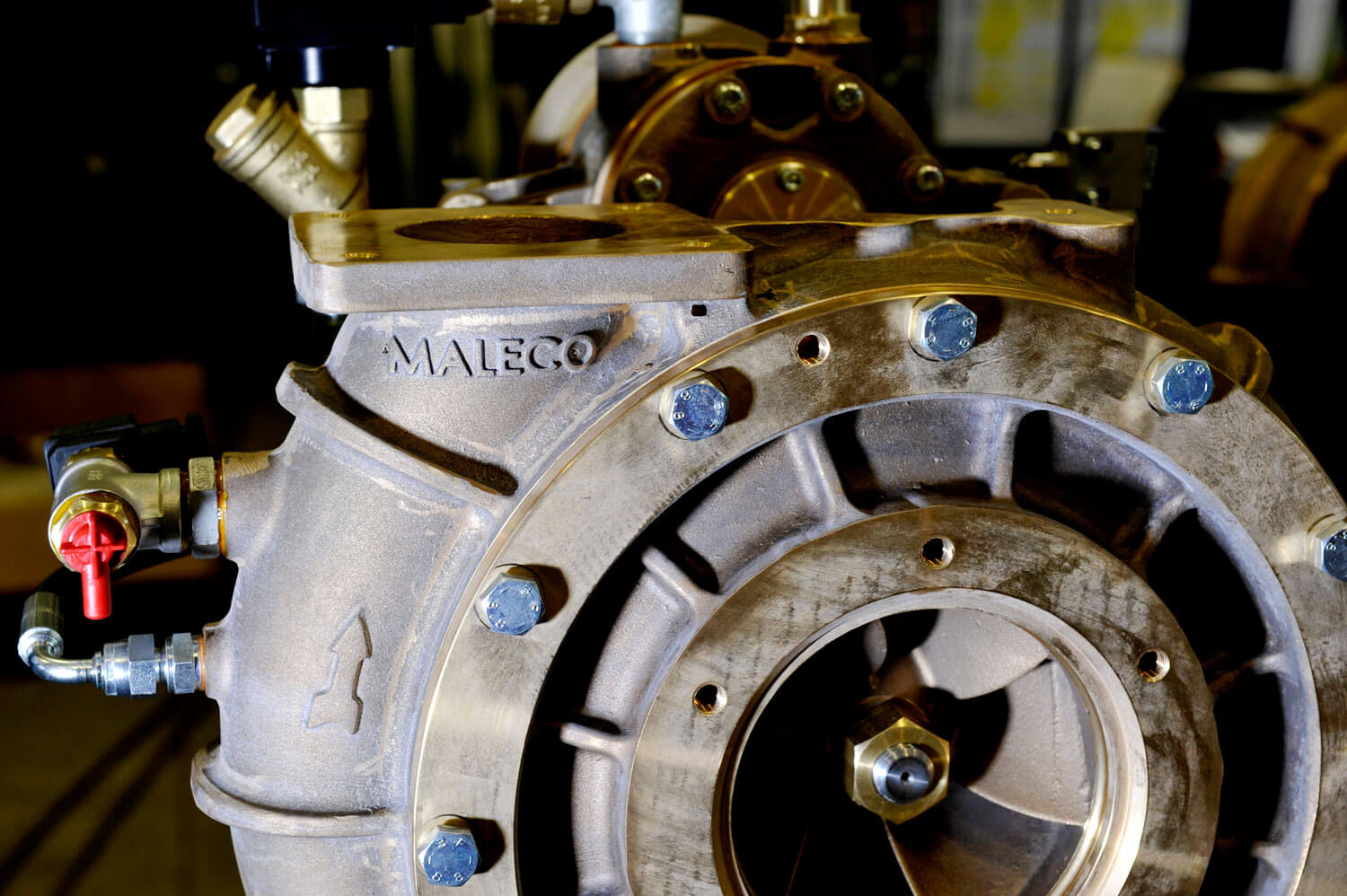

- Case and impeller made of Bronze
- Front and rear covers made of Bronze
- Impeller’s wear rings replaceable
- Ball bearing box made of Cast Iron
- Stainless Steel shaft supported by ball-bearings
- Self-balanced mechanical seal, maintenance free
- Flanged suction inlet
- Flanged delivery outlet
- Reciprocating Double Pistons Priming System with automatic engagement / disengagement done through electric clutch, supplied fully assembled to the water pump
- Drive flange SAE 1510

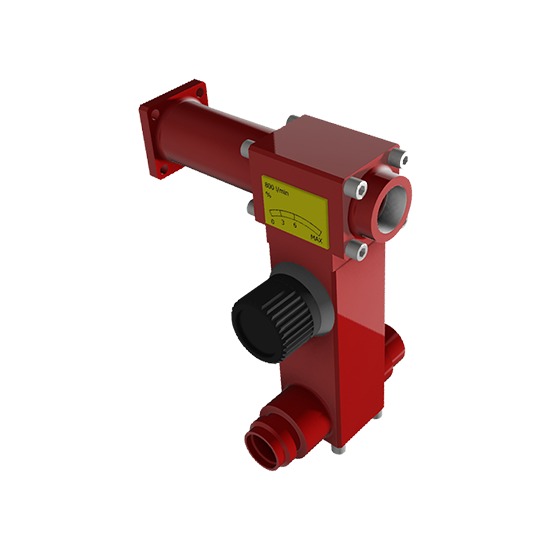

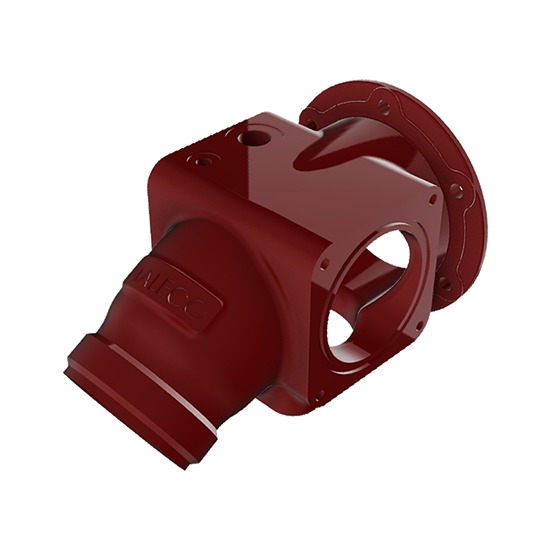

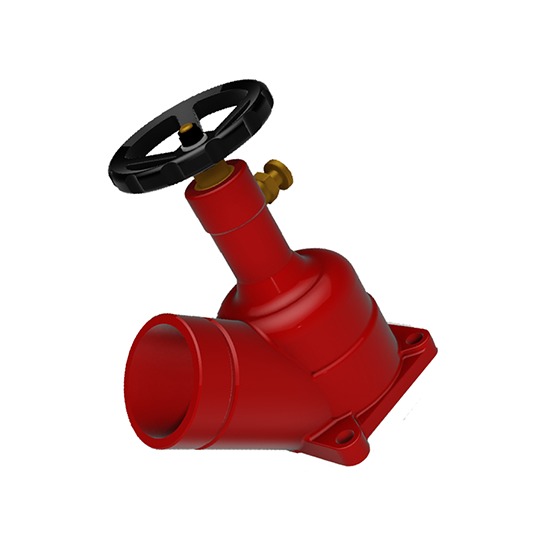

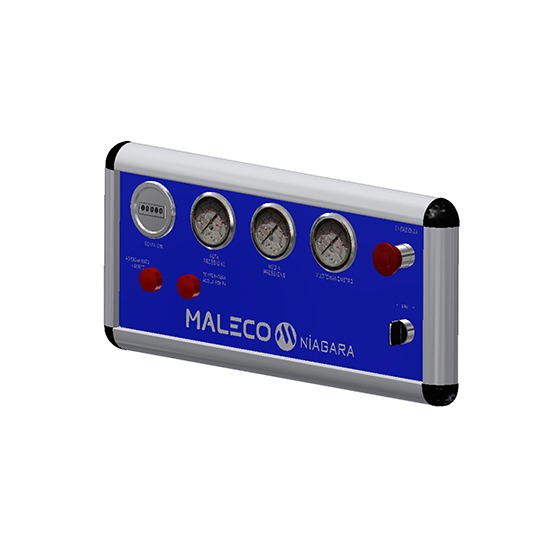

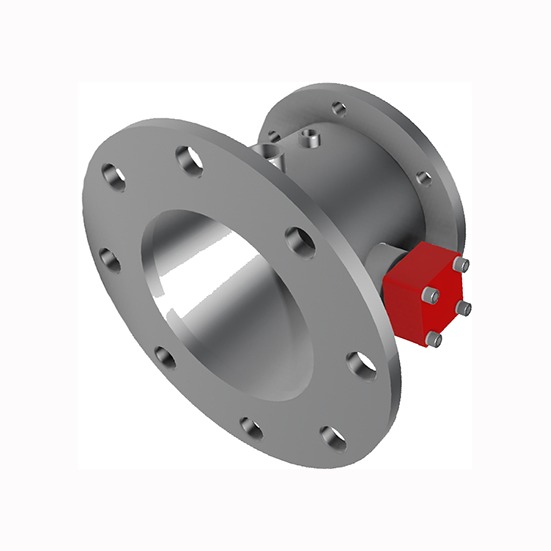

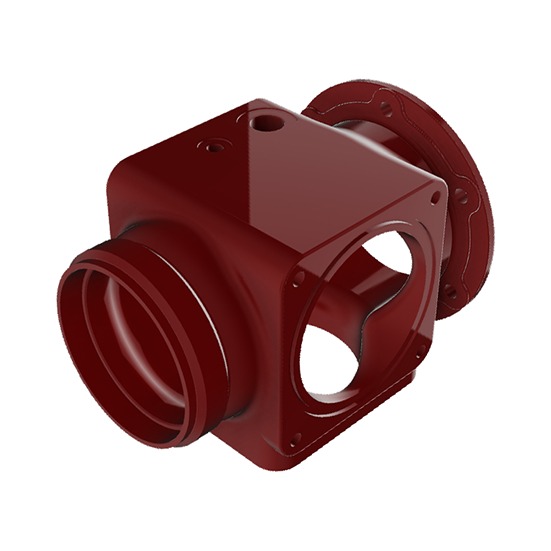

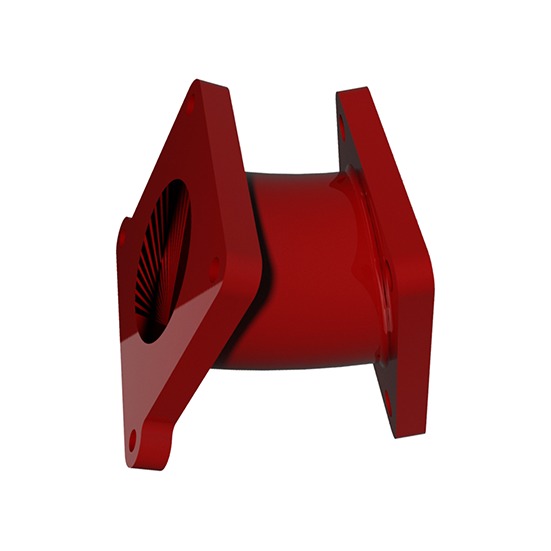

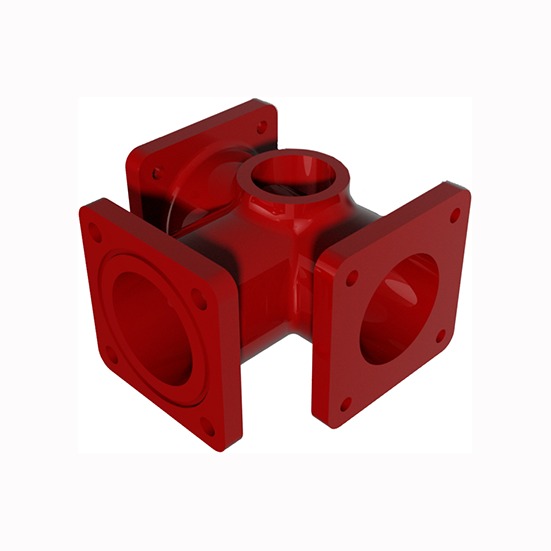

Accessories
