Dry Chemical Powder System

Our team of experienced engineers provides technical support that allows customizing the required equipment for any safety application. With a simple but robust operating principle, they are the result of complex engineering studies designed to guarantee high performance even after long periods of inactivity.

MALECO DRY POWDER SYSTEMS are designed and built according to the specific technical requirements of the various customers and the products are certified according to the regulation 2014/68/EU (EX PED 97/23/EC), ASME VIII DIV. I. The construction materials of the swivel joint of the reel hose are made of anti-friction material such as bronze with composite gaskets VITON + PTFE with internal passages of 1 min and 12 sec, with very low pressure losses thanks to the study of the internal fluid dynamics carried out by MALECO.

• Systems suitable for the use of abc extinguishing powders according to the en 615 iso 7072 standards
• N. 1 nitrogen tank capacity 14 lt or 27 lt loaded at 200 bar with nitrogen complete with manual or electric quick exhaust valve for remote control T-PED certified
• N. 1 pressure reducer 200 – 12 bar with safety disk
• N. 1 safety valve PED CE certified

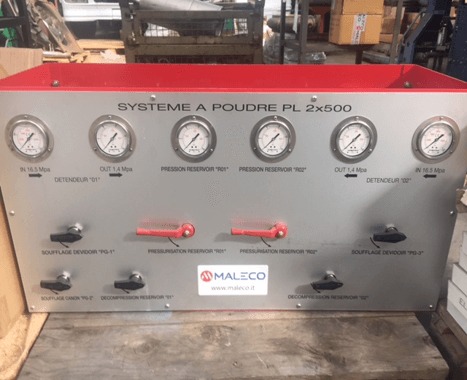

• N. 1 control panel with valves for system control
• Flexible hoses connecting high and low pressure
• Device for opening the discharge valve
• Discharge ball valve with vitrified PTFE gaskets complete with pneumatic actuator 20 bar
• High quality rubber discharge hose, max. length 30 mt 38 x 52 / 600 psig – 40 ° + 70 °C
